E32-DTU-433L30 Lora Long Range RS232 RS485 SX1278 SX1276 1W IoT Transmitter Receiver 433mhz Module[Distance] : 8.0km

E32-DTU-433L30 Lora Long Range RS232 RS485 SX1278 SX1276 1W IoT Transmitter Receiver 433mhz Module[Distance] : 8.0km

4,000.00৳

2 in stock

  • Description

Description

E32-DTU-433L30 Lora Long Range RS232 RS485 SX1278 SX1276 1W IoT Wireless Transceiver 30dBm Transmitter Receiver 433mhz Module

RF Parameter Value Remark
Working frequency 425~450.5 MHz
Default: 433MHz

Transmitting power 30 dBm
About 1W

Receiving sensitivity -147 dBm
Air data rate: 2.4kbps

Air data rate 0.3k~19.2kbps
Default: 2.4kbps

Test distance 8000 meter
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 2.4kbps

Hardware Parameter Value Remark

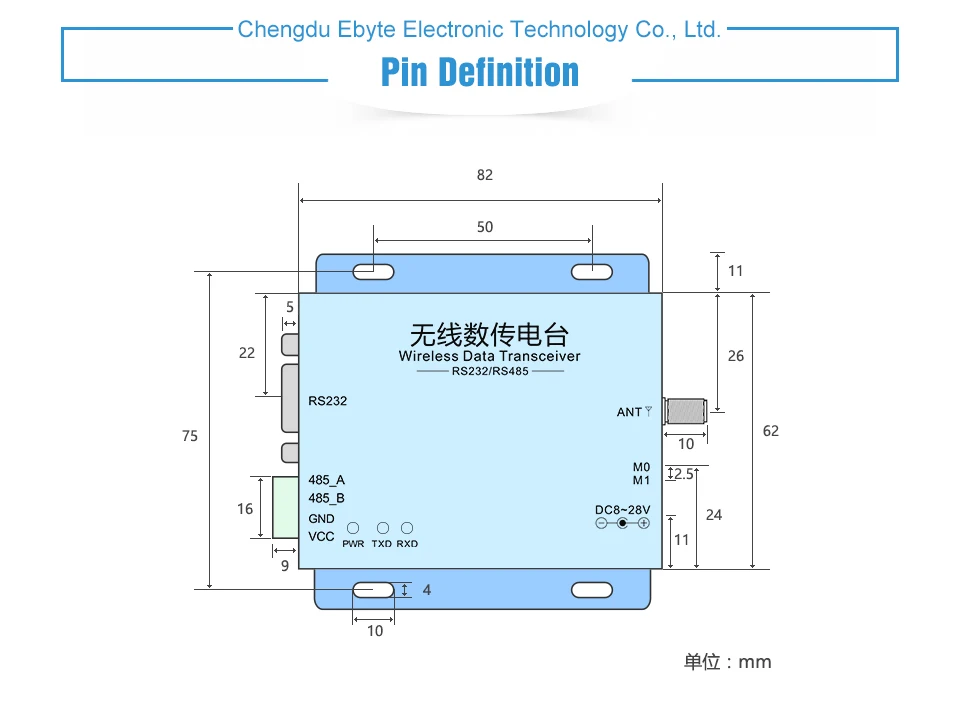

Size 82 * 62 * 25 mm

Antenna type SMA-K

Communication interface RS232 / RS485
Baud rate: 1200~115200, default: 9600

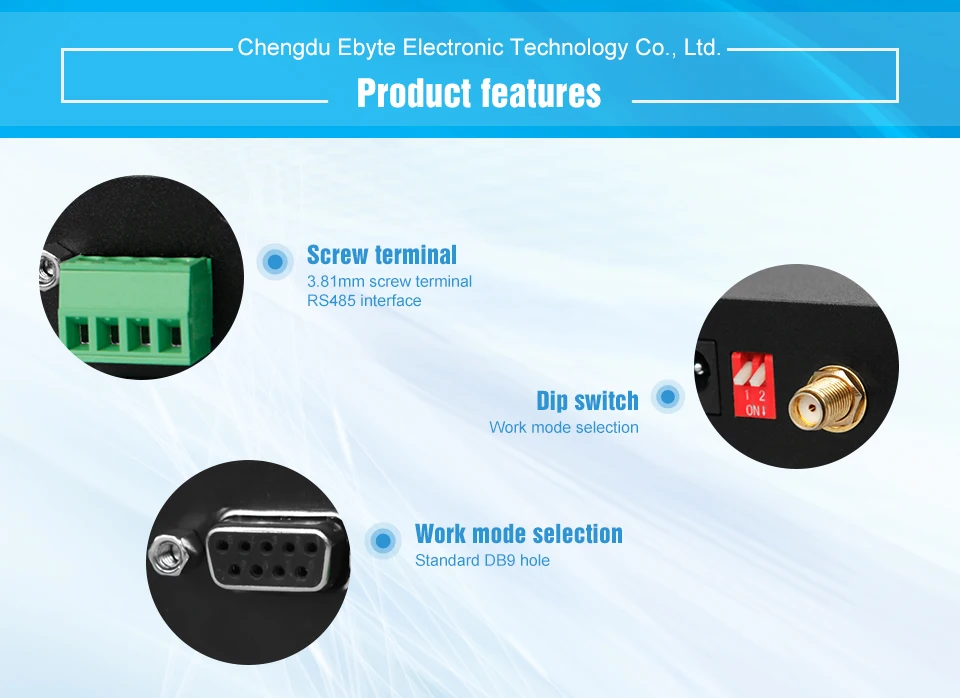

Package DB-9 / Screwing
Standard DB9 Hole/3.81 connecting terminal

Buffer 512 bytes buffer
Automatically sub-packaging with 58 bytes per package

Electronic parameter Min. Typ. Max. Unit Condition
Power supply 10 12 28 V
Transmitting current 625 684 761 mA 30dBm(1W)
stand-by current 27 29 32 mA
Operating temperature -40 20 +85 ℃
Operating humidity
10 60 90 %
Storage temperature -40 20 +125 ℃

Item specifics
  • Brand Name:CDEBYTE
  • Model Number:E34-DTU(2G4H20)
  • Size :82 * 62 *25mm
  • Power:20dBm
  • Frequency :2.4GHz
  • Distance:8.0 km
  • Interface:RS485/RS232
  • Connector :RS485:1 * 4 * 3.81mm RS232:DB9
  • Supply Voltage :8 ~ 28V DC
  • Address :65536 configurable addresses
  • Key Word:2.4GHz Wireless Module for PLC
Product Description
Wireless rf module
E34-DTU-2G4H20 Frequency Hopping Long Range RS232 RS485 nRF24L01P 2.4Ghz 100mW uhf Wireless Transceiver Transmitter Receiver
RF Parameter Value Remark
Working frequency 2400~2518 MHz Default: 2.4GHz
Transmitting power 20 dBm About 100mW
Receiving sensitivity -102 dBm Air data rate: 250kbps
Air data rate 250k~2Mbps Default: 250kbps
Test distance 8000 meter In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 250kbps



Hardware Parameter Value Remark
Size 82 * 62 * 25 mm
Antenna type SMA-K
Communication interface RS232 / RS485 Baud rate: 1200~115200, default: 9600
Package   DB-9 / Screwing Standard DB9 Hole/3.81 connecting terminal
Buffer 256 bytes buffer Automatically sub-packaging with 27 bytes per package



Electronic parameter Min. Typ. Max. Unit Condition
Power supply 10 12 28 V

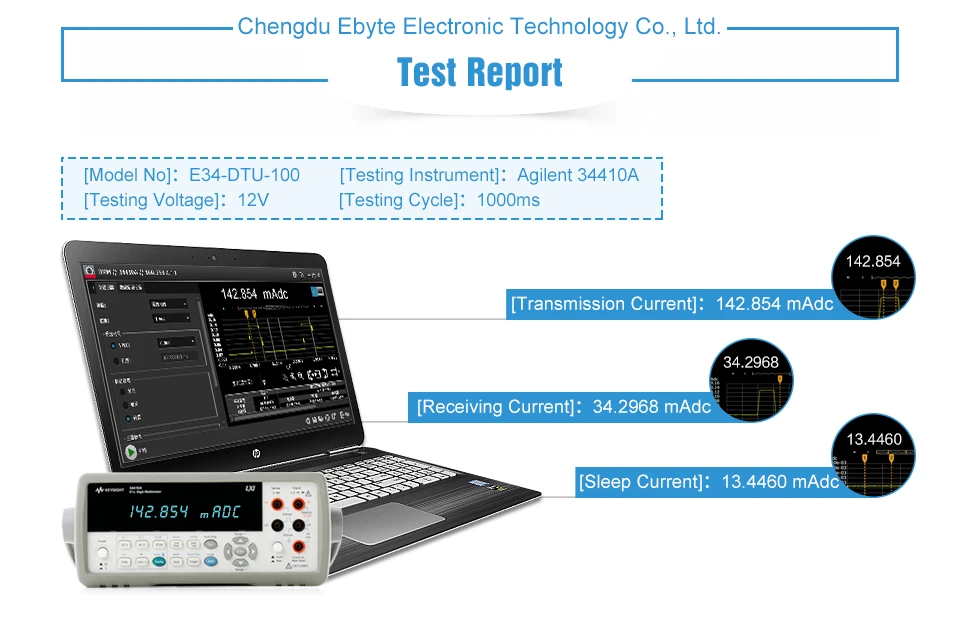

Transmitting current 131 143 157 mA 20dBm(100mW)
stand-by current 23.0 25.5 28.1 mA
Operating temperature -40 20 +85
Operating humidity 10 60 90 %
Storage temperature -40 20 +125
